The typical components of vacuum annealing furnace include a heating furnace, vacuum system, control system, and safety system
Furnace Chamber:Graphite furnace chamber
Heating Element:Graphite soft felt and hard felt form composite carbon fiber,Graphite heating element
Available Atmosphere:inert atmosphere (N2, CO2, Ar2, etc.)
Vacuum Level:high vacuum,low vacuum
Max Temperature:2000℃
Temperature Accuracy:±1℃
Application Industry:Chemical industry,Aerospace and automotive industry,Nickel base,Special steel,Precision alloys,Active metals,Magnetic materials, etc.,Material annealing
Introduction:
The typical components of vacuum annealing furnace include a heating furnace, vacuum system, control system, and safety system. Commonly used to process various metal materials, semiconductor materials, polymer materials, magnetic materials, etc. Usually, 750℃-1100℃ can be used for annealing treatment.
During the annealing process, the material to be treated is placed in a graphite furnace, which is then heated to the required temperature by a heating element. Next, a vacuum system removes oxygen and other gases from the furnace, creating an oxygen-free or low-oxygen environment to prevent oxidation or contamination of materials. The control system is responsible for monitoring and adjusting parameters such as temperature and pressure to ensure that the annealing process can achieve the expected results and ensure the safety of the operation.
Features
Using graphite as the heating element, the maximum temperature can reach 2400°C.
The insulation material uses imported graphite soft felt and hard felt to form a composite carbon fiber furnace.

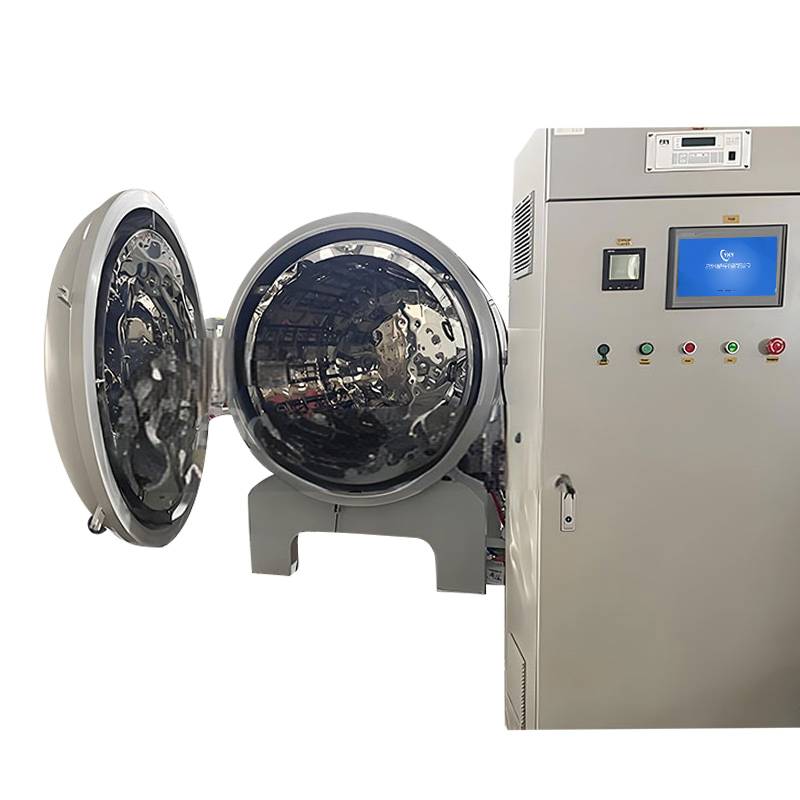

The inner layer of the furnace shell is made of polished stainless steel, and the outer layer is made of carbon steel, with a double-layer water-cooled structure.
The human-machine interface adopts a high-definition touchscreen and has a built-in operating system developed by our company.
PLC automatic control system.
It adopts an advanced front and rear door opening design to facilitate customers to load and unload workpieces.
There is an observation window on the furnace shell to facilitate observation of the heating conditions in the furnace.
Use a tungsten-rhenium thermocouple and an infrared thermometer to measure temperature. The tungsten-rhenium thermocouple can enter and exit automatically.
model | Heating area (width*height*depth) ( mm ) | Working temperature (℃) | Power (kW) | Power supply ( V ) |
CYKY- 18GVF - 223 | 200*200*300 | 18 00 | 60 | 380 |
CYKY- 18GVF - 334 | 300*300*400 | 18 00 | 100 | 380 |
CYKY- 18GVF - 446 | 400*400*600 | 18 00 | 160 | 380 |
CYKY- 18GVF - 557 | 500*500*700 | 18 00 | 220 | 380 |
CYKY- 18GVF - 669 | 600*600*900 | 18 00 | 300 | 380 |
model | Heating area (width*height*depth) ( mm ) | Working temperature (℃) | Power (kW) | Power supply ( V ) |
CYKY- 22GVF - 223 | 200*200*300 | 2200 | 85 | 380 |
CYKY- 22GVF - 334 | 300*300*400 | 2200 | 150 | 380 |
CYKY- 22GVF - 446 | 400*400*600 | 2200 | 235 | 380 |
CYKY- 22GVF - 557 | 500*500*700 | 2200 | 315 | 380 |
CYKY- 22GVF - 669 | 600*600*900 | 2200 | 425 | 380 |
