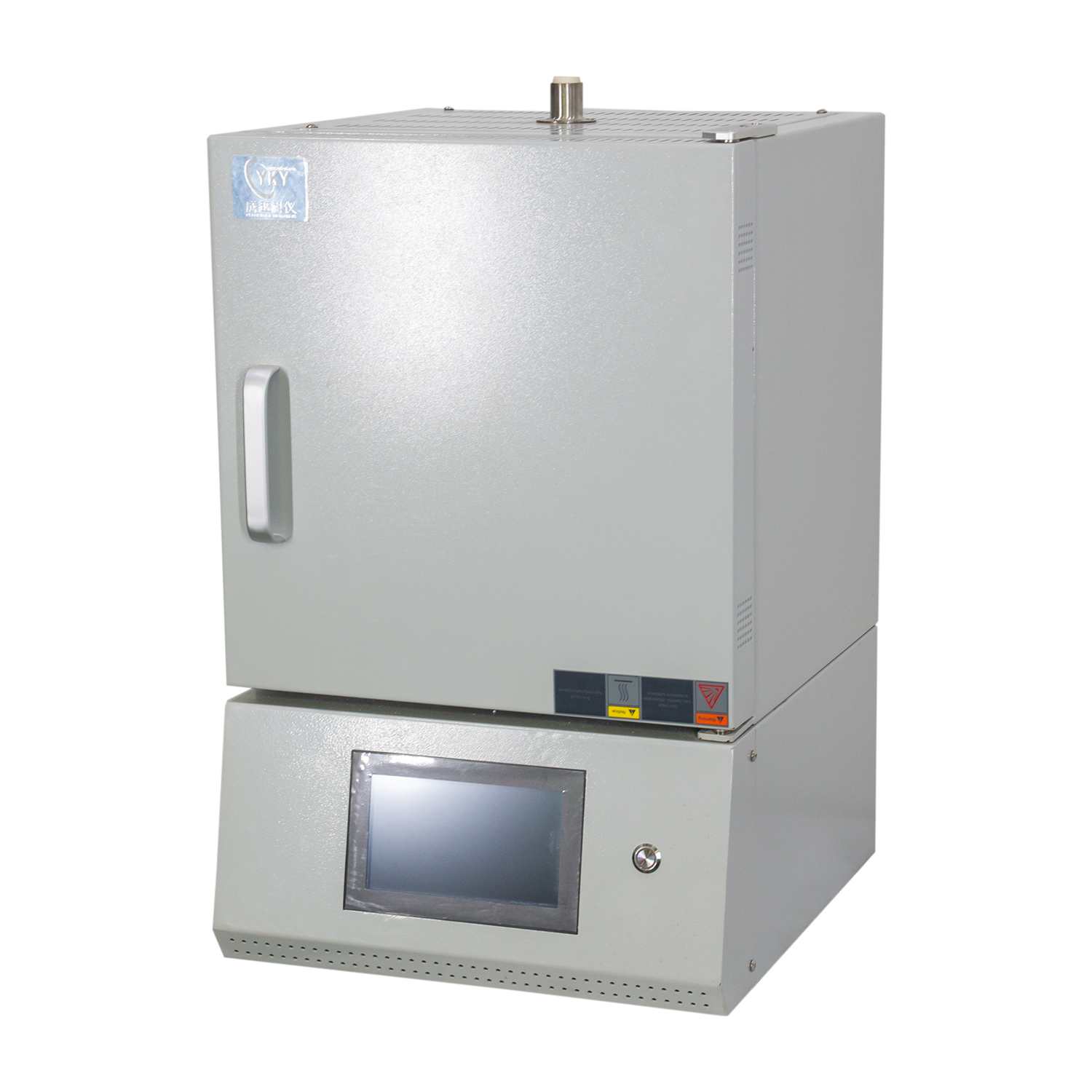

The 1200 degree mini box muffle furnace is very widely used in laboratory and industrial applications, especially for processes such as sintering, annealing
The miniature chamber furnace is widely used in laboratory sintering and annealing, baking in denture processing industry, pre-sintering of zirconium disks and so on. The product has the following outstanding features:
1. compact structure, light weight, touch screen operation, especially convenient for laboratory use, the external dimensions are only: 260 × 260 × 380 (mm);
2. the use of molybdenum iron chromium aluminum alloy heating wire, so that the temperature point to improve and extend the use of time by several times.
3. the alloy heating wire with the furnace and the furnace to improve the temperature point and extend the use of time by a number of times. 4. Alloy heating wire and furnace chamber cast as a whole, temperature redundancy is large, the structure is not easy to damage.
The miniature chamber furnace is widely used in laboratory sintering and annealing, baking in the denture processing industry, pre-sintering of zirconium disks and so on.
Translated with DeepL.com (free version)
Product name | Small box Muffle furnace | |
Product model | CY-M1200-1L | CY-M1200-11L |
CY-M1200-18L | CY-M1200-21L | |
CY-M1200-31L | CY-M1200-41L | |
Furnace mode | Open side | |
Display mode | LED7 inch touch screen | |
Limiting temperature | 1200 ℃ | |
Operating temperature | 1150 ℃ or less | |
Heating rate | Suggestion :10 ° C /Min Max:50 ° C /Min | |
Heating zone | Monothermal region | |
Control mode | Intelligent PID | |
Temperature control accuracy | + / - 1 ℃ | |
Temperature curve | 30 sections of "time-temperature curve" can be set arbitrarily, and 1 curve is pre-stored | |
Overtemperature alarm | There are | |
Overcurrent protection | There are | |
Break cue | There are | |
Temperature measuring element | Type K thermocouple | |
Heating element | Imported alloy heating wire | |
Furnace material | Alumina fibre | |
Overall dimension | 260×260×380 (mm) | |
Electrical certification | CE certification | |
After-sales service | 12 months warranty, lifetime warranty | |
Packaging mode | Plywood wooden packing box | |
Spare parts | 1 power cord; 1 pair of protective gloves; 1 copy of manual |
The 1200 degree mini box muffle furnace is very widely used in laboratory and industrial applications, especially for processes such as sintering, annealing, denture processing and zirconium disk pre-sintering. Below are some of the key steps and features:
Compact structure: the usual size is 100mm x 100mm x 100mm, light weight, easy to use in the laboratory.
High temperature performance: the maximum temperature can reach 1200 ℃, the working temperature is generally below 1150 ℃.
Heating element: molybdenum-doped iron-chromium-aluminum alloy heating wire, precise temperature control, long life.
Temperature control precision: intelligent PID control, temperature control precision up to ± 1 ℃.
Safety function: with over-temperature alarm, over-current protection and broken couple prompt function.
Use steps
Make sure the furnace chamber is clean and free of debris.
Set the temperature curve as needed, usually can preset 30 time-temperature curve.
Load the sample:
Place the sample in the furnace chamber to ensure even distribution.
Close the furnace door to ensure a good seal.
Setting parameters:
Set the desired temperature and time parameters via the touch screen or control panel.
Start the heating program and gradually increase the temperature to the target temperature, the recommended rate of increase is 10°C/minute.
Sintering/Annealing Process:
Hold at the target temperature for a certain period of time, adjust the holding time according to the material and process requirements.
Upon completion, gradually cool down to room temperature to avoid sample damage due to rapid cooling.
Remove the sample:
After confirming that the furnace chamber temperature has dropped to a safe range, open the furnace door to remove the sample.
Carry out subsequent processing or analysis.
Application Areas
Laboratory research: for high temperature treatment in material science, chemistry and physics experiments.
Denture processing: For baking and sintering of denture materials to improve material properties.
Pre-sintering of zirconium disks: for the pre-sintering of zirconium disks to ensure stability and precision in subsequent processing.
